Thick Wall Carbon Fiber Tube: High-Strength Structural Tubing for Demanding Applications
Persona de Contacto : Terry.Chang, Grace Gu
Número de teléfono : +86-13681832139
WhatsApp : +8619537611058
| Cantidad de orden mínima : | Negociable | Precio : | negotiable |
|---|---|---|---|
| Detalles de empaquetado : | Embalaje de cartón corrugado normal para envío internacional | Tiempo de entrega : | 7 días hábiles después de recibir el pago del pedido |
| Condiciones de pago : | T/T, Western Union, carta de crédito | Capacidad de la fuente : | Mes de 1500 piezas |
| Lugar de origen: | Porcelana | Nombre de la marca: | Tanku |
|---|---|---|---|
| Certificación: | SGS, ROHS | Número de modelo: | OEM |
|
Información detallada |
|||
| Nombre del producto: | Tubo de la fibra de carbono | Material: | el rollo 3K envolvió la tela cruzada Matte Finish de la fibra de carbono |
|---|---|---|---|
| Tratamiento superficial: | 3K, sarga mate | Característica: | Peso ligero de alta resistencia |
| Rango de OD: | 5 mm a 100 mm | Longitud: | Cortar en cualquier tamaño según el requisito. |
| H Content (%): | 0 | Ash Content (%): | 0 |
Descripción de producto

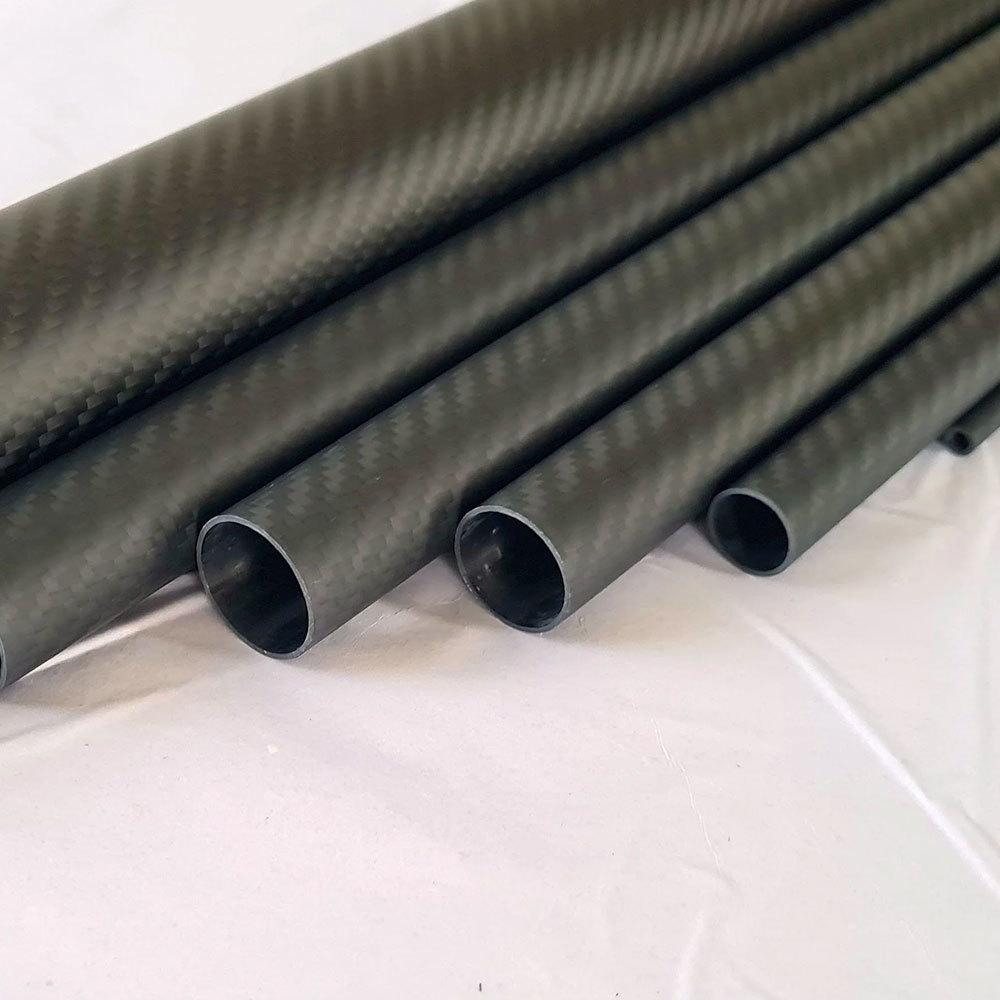

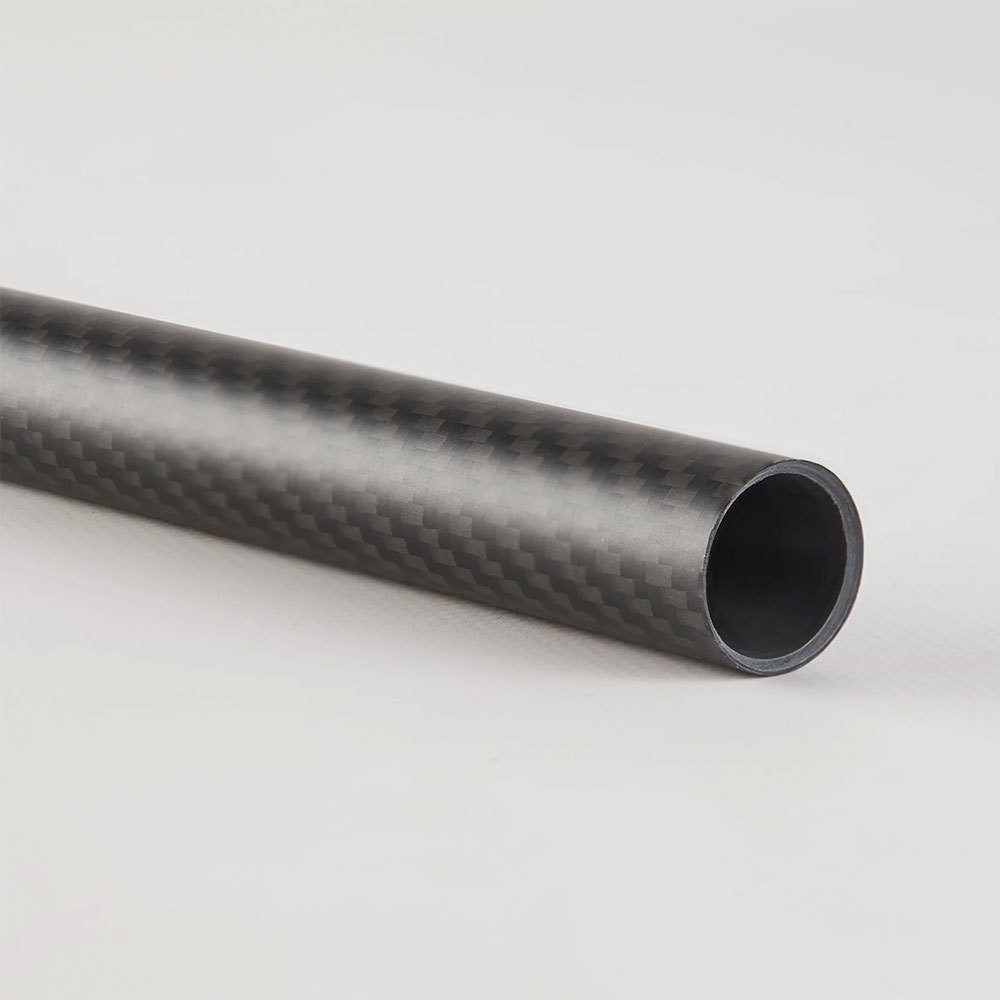

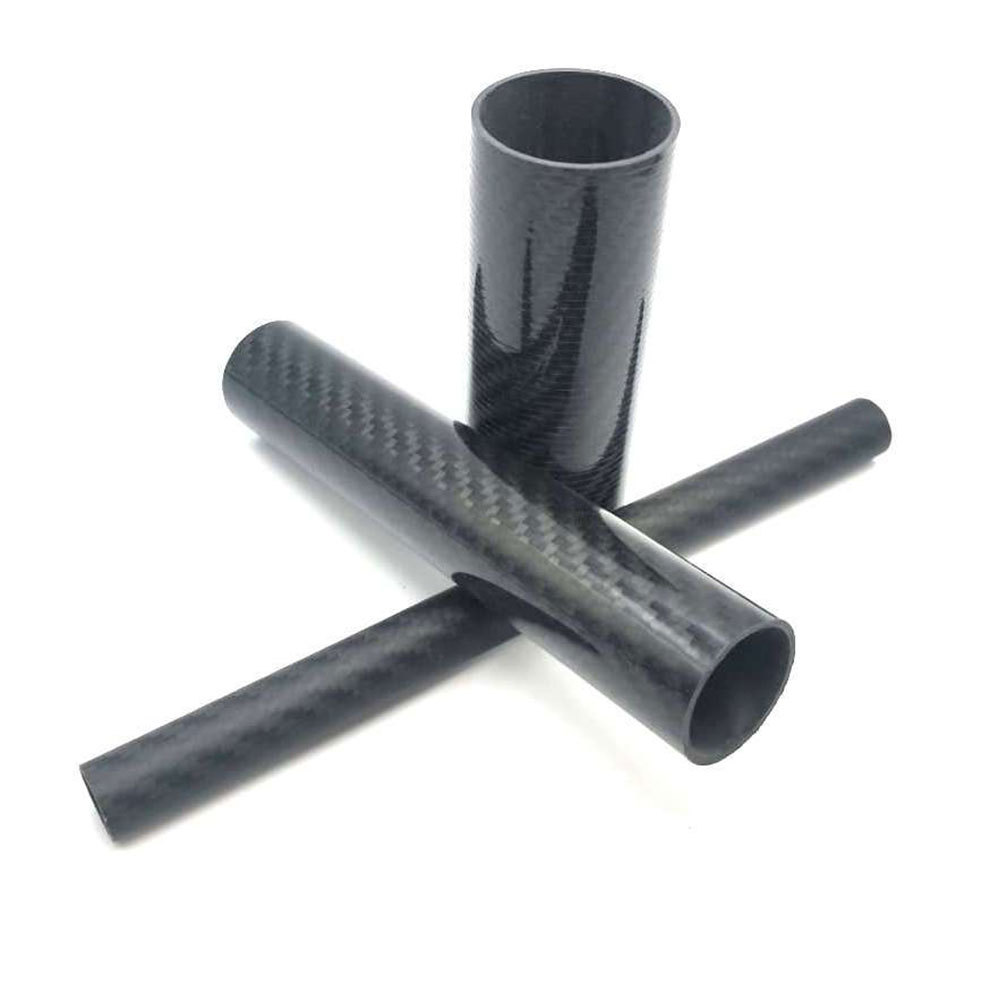

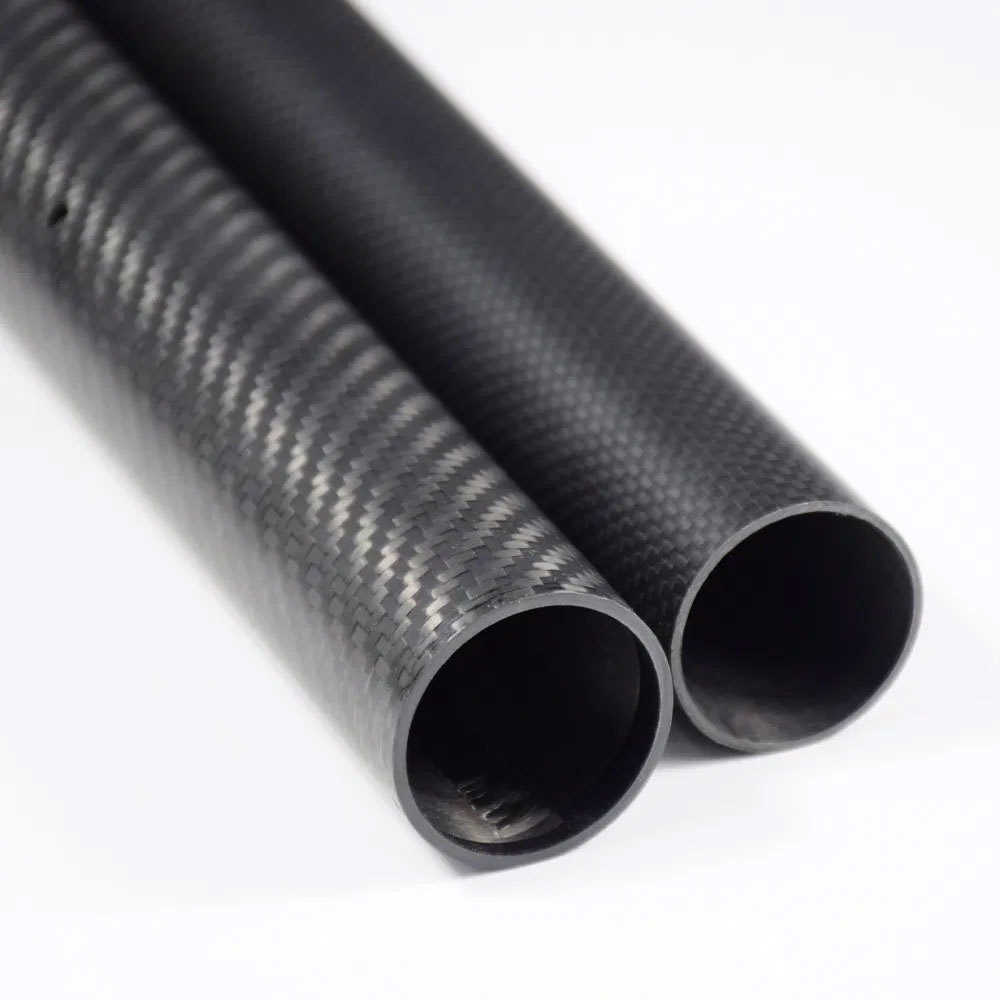

High Stiffness, Corrosion Resistant 100% 3K Carbon Fiber Tube | Strong, Lightweight
Carbon fiber is the ultimate material for the fire staff and other long props. Perfectly straight, incredibly stiff, and ultra-lightweight, this material is ideal for a contact staff. It won't bend and will far outlast aluminum construction. The direction of the fibers and the thickness of the wall are used to minimize flexing, making it much more responsive and eliminating wobbles. The matte finish is ideal for ensuring the grip material stays affixed to the staff and never causes problems. These tubes are perfect for the DIY warrior building their staff.
Made with aerospace-quality carbon fiber cloth and convolute wrapped using a tight 3k 8 harness satin weave common in aerospace applications, our tubes have a fiber/resin ratio of 60/40% by weight. With 0/90 degree fiber orientation, they are cured under pressure and at high temperatures, ensuring strength and durability. After curing, the tubes are fine-sanded and almost ready for painting. Primers and prep required. Upgrade to the strength of aerospace technology with our carbon fiber tubes.
We specialize in the production of carbon fiber pipes, plates, and other carbon fiber products widely used in the defense industry, aerospace, sports, transportation, and other related industries.
All of our products are produced in our own workshop, made of 100% carbon fiber. We can supply carbon fiber tubes with any specifications, with outer diameters from 4mm to 150 mm and any length, by precise customization to your requirements.
What are carbon fiber tubes used for?
Carbon fiber tubes are used in a wide range of applications, including tactical ladders, systems, rods, and beams. Carbon fiber provides low weight, and better mechanical properties over conventional materials like aluminum, and steel.
Are carbon fiber tubes strong?
Carbon fiber tubes are used in numerous applications like tactical ladders, trusses, beams, and more. Carbon fiber is typically chosen over traditional materials such as aluminum, steel, and titanium because of the following properties: High strength and stiffness to weight.
Do carbon fiber tubes bend?
Our carbon fiber tubing is built using a thermoset epoxy resin. This means that once cured the epoxy never returns to a liquid state. If you tried to bend our tubing it would break with enough applied force but it will not bend. Carbon fiber/epoxy composite is very stiff!
![]()
![]()
![]()
![]()
