High Tensile Strength and Stiffness Roll Wrapped Tubing 3K Twill Carbon Fiber Round Tube

Descripción de producto

High Tensile Strength and Stiffness Roll Wrapped Tubing 3K Twill Carbon Fiber Round Tube

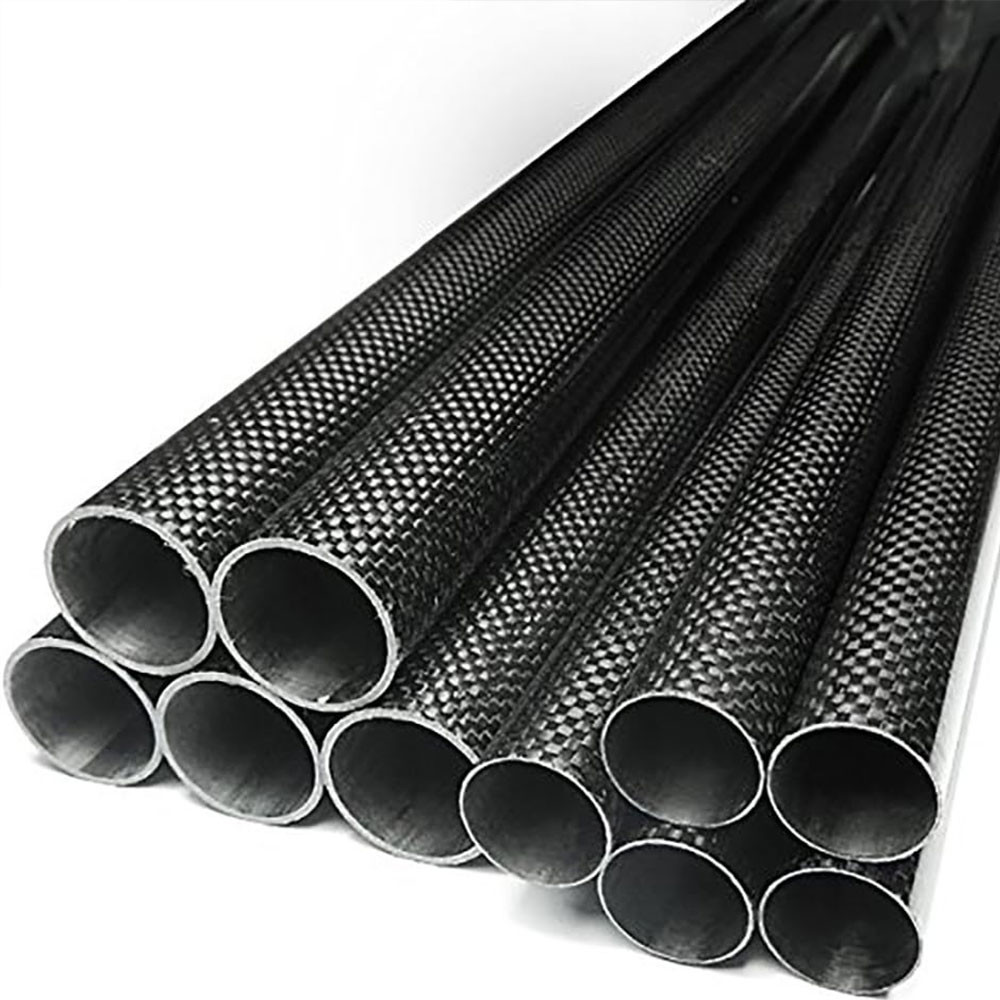

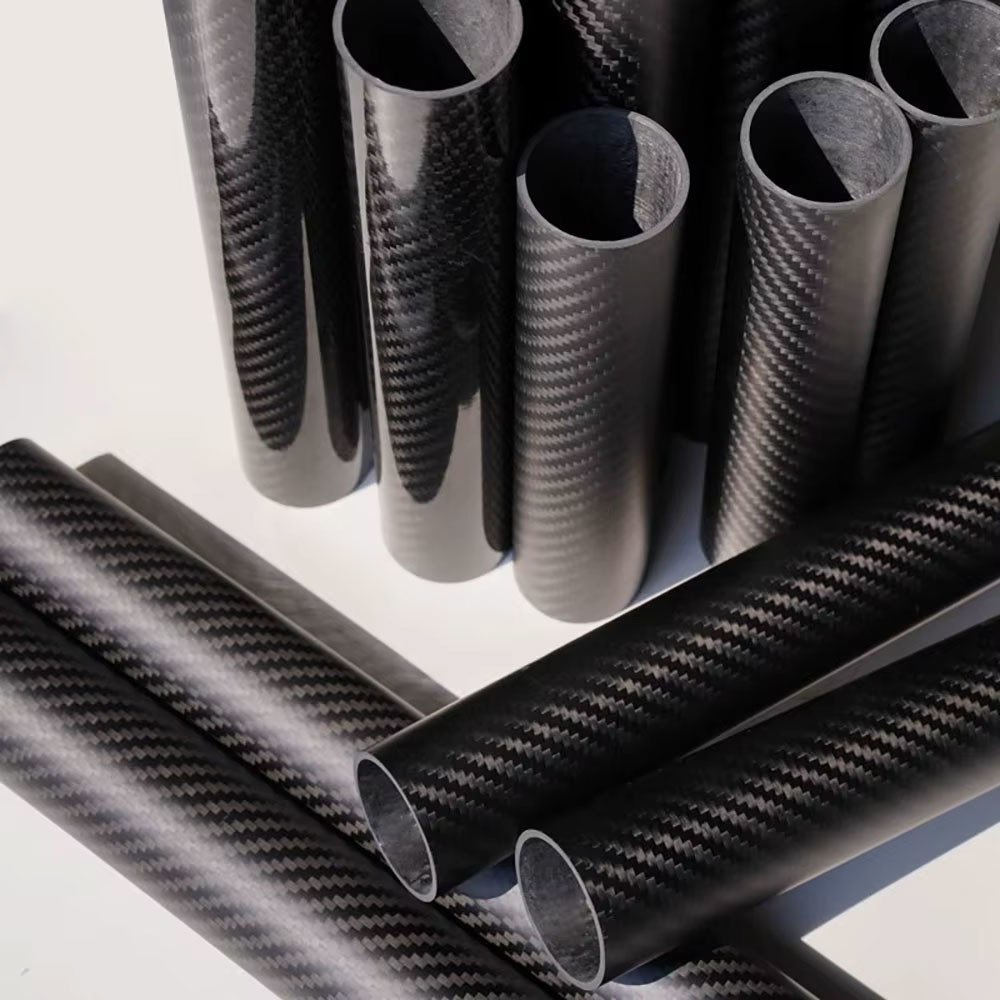

Our twill round carbon fiber tube is roll wrapped from unidirectional carbon fiber with a 3k twill carbon fiber fabric outer layer. They not only offer a beautiful surface but also excellent torsional characteristics, as well as crush strength, and are ideal for high torque applications. This round tubing is ideal for building lightweight frames and structures, tubular vessels, poles, column supports, and other applications where low weight and high stiffness are essential, and appearance is also important.

Our roll-wrapped carbon tubes come in various diameters, lengths, and thicknesses. If you want to buy a large-diameter carbon fiber tube or any other specific carbon fiber tube, do not hesitate to contact us. We can custom-craft a carbon fiber tube for you.

How to make carbon fiber tubing?

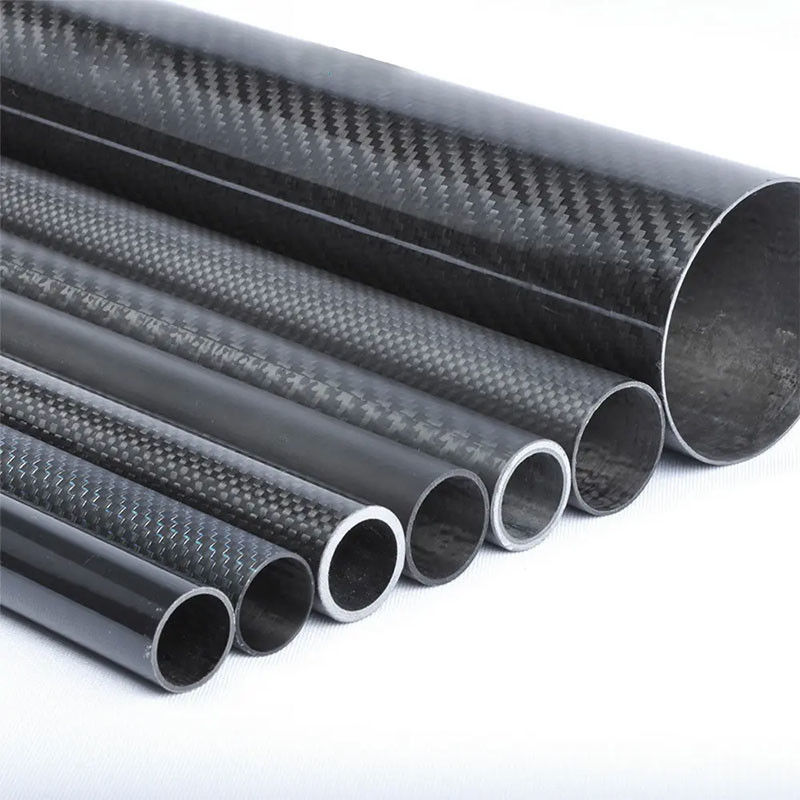

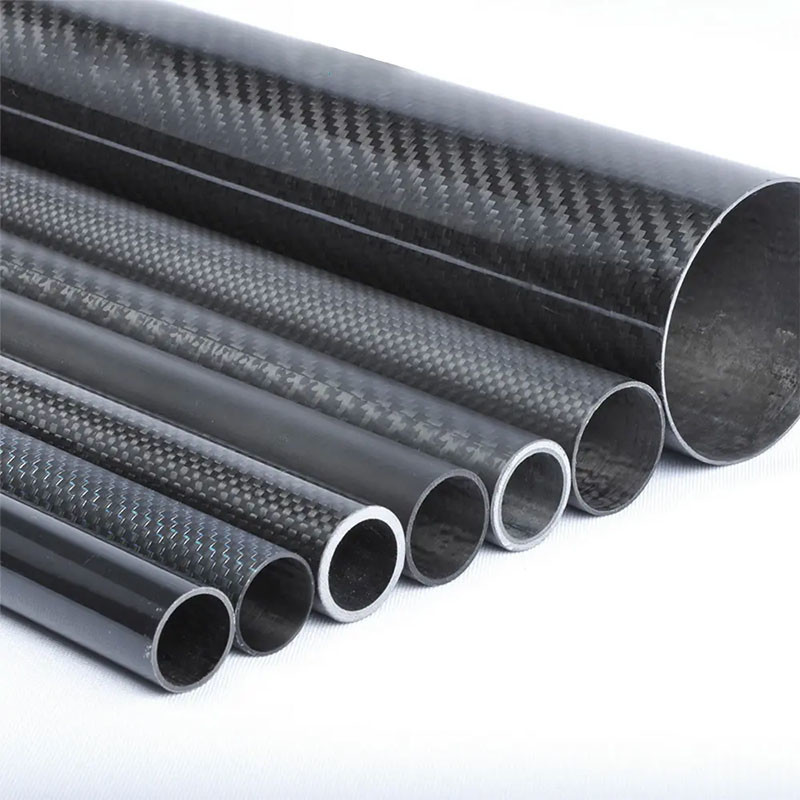

Our carbon fiber round tube is rolled unidirectional carbon fiber fabric into a mandrel and wrapped with a 3k finish fabric exterior. Unidirectional carbon fiber is the structural backbone of all our tubes. The 3k fabric weave that gives carbon fiber tubes their traditional ”carbon fiber look” is only the outside layer and helps with durability. Usually, any wall thickness can be made by changing the number of layers or combining different prepreg thicknesses (usually 0.15mm- 0.25mm thick per layer). Our round tubes typically use layups designed for optimal performance in a wide range of conditions. We use 100% pure carbon fiber materials to make carbon fiber tubing in a wide variety of diameters and lengths. Common diameter includes 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm carbon fiber tube, ... 40mm carbon fiber tube, our round tube standard length is 1000mm, If you need a carbon fibre tube with other lengths or diameters, or need colored carbon fiber tube, do not hesitate to contact us, we can cut and custom carbon fiber tubes to your specified.

Twill carbon fiber round tube properties

• High strength-to-weight and stiffness-to-weight ratios
• Resistance to fatigue
• Dimensional stability due to an extremely low coefficient of thermal expansion (CTE)
• 100% high-quality pure carbon fiber (aka full carbon).
• Pin-hole free high-matte cosmetic surface.
• A wide range of diameters and tube lengths is available.

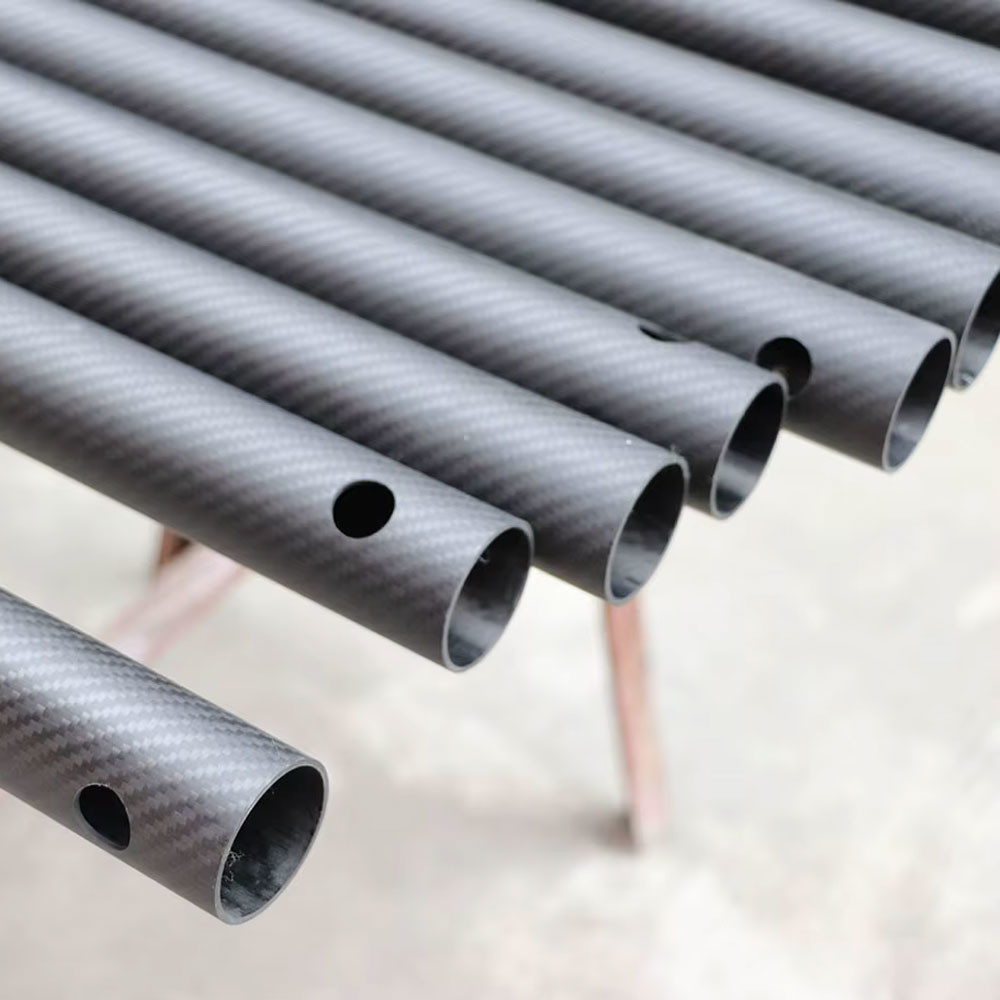

• Offer carbon fiber tube cutting service according to your design drawings. Cut to dimensions with a CNC machining center, which ensures stable and precise dimensions.
